Transfer & Stamping Automation Systems

Transfer & Stamping Systems

Velsson is an Authorized Representative for TRANS Automation Technology Co., Ltd.

Velsson represents TRANS Automation Technology Co., Ltd., a specialized manufacturer of stamping automation systems integrating R&D, manufacturing, and full production line integration.

For automotive manufacturers operating 60T to 3000T press lines, TRANS delivers transfer automation, feeding systems, robotic integration, and full stamping line solutions designed to improve press utilization, stability, and operational safety.

Press & Punching Automation

Increase Press Utilization. Improve Transfer Stability. Reduce Manual Risk.

Modern press lines demand:

Higher strokes per minute
Faster die changeovers
Stable part transfer
Reduced operator exposure
Support for high-strength steel and aluminum

TRANS transfer systems are engineered for multi-station stamping environments where repeatability and stability directly impact OEE.

Available configurations include:

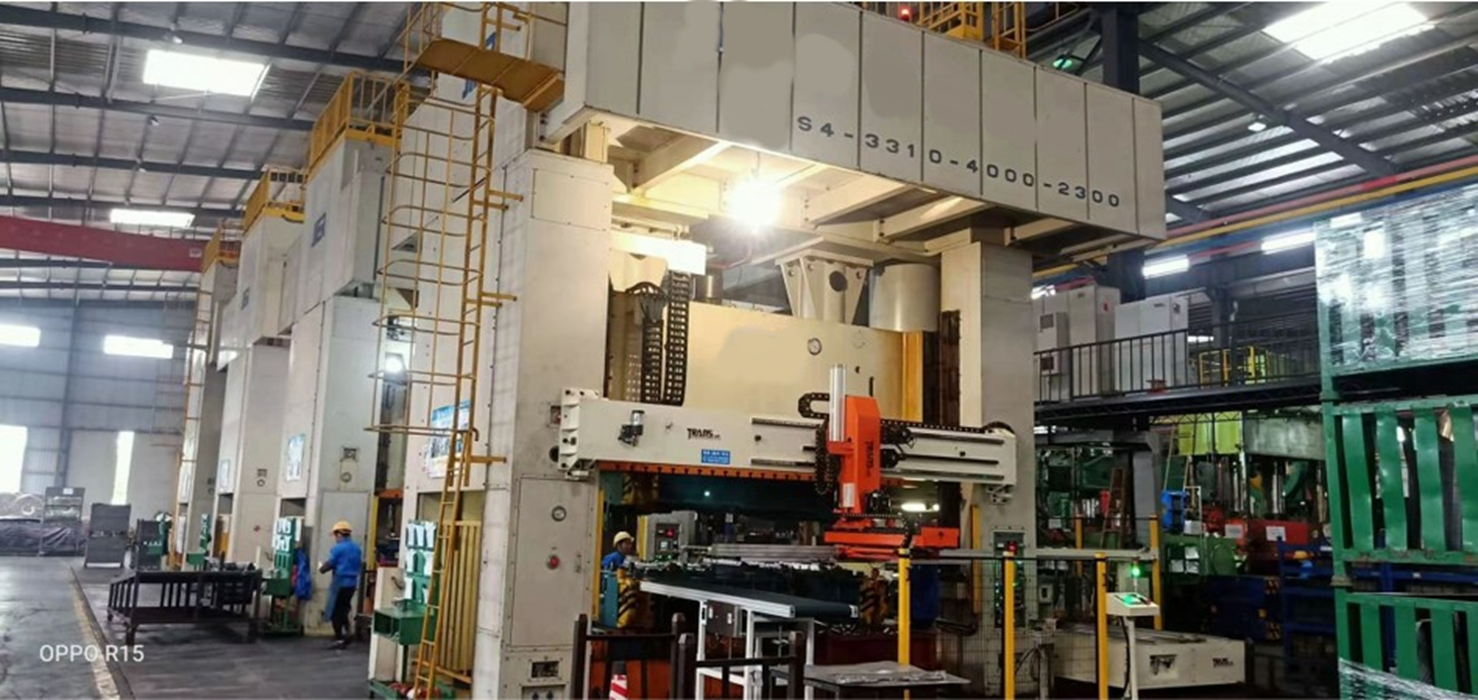

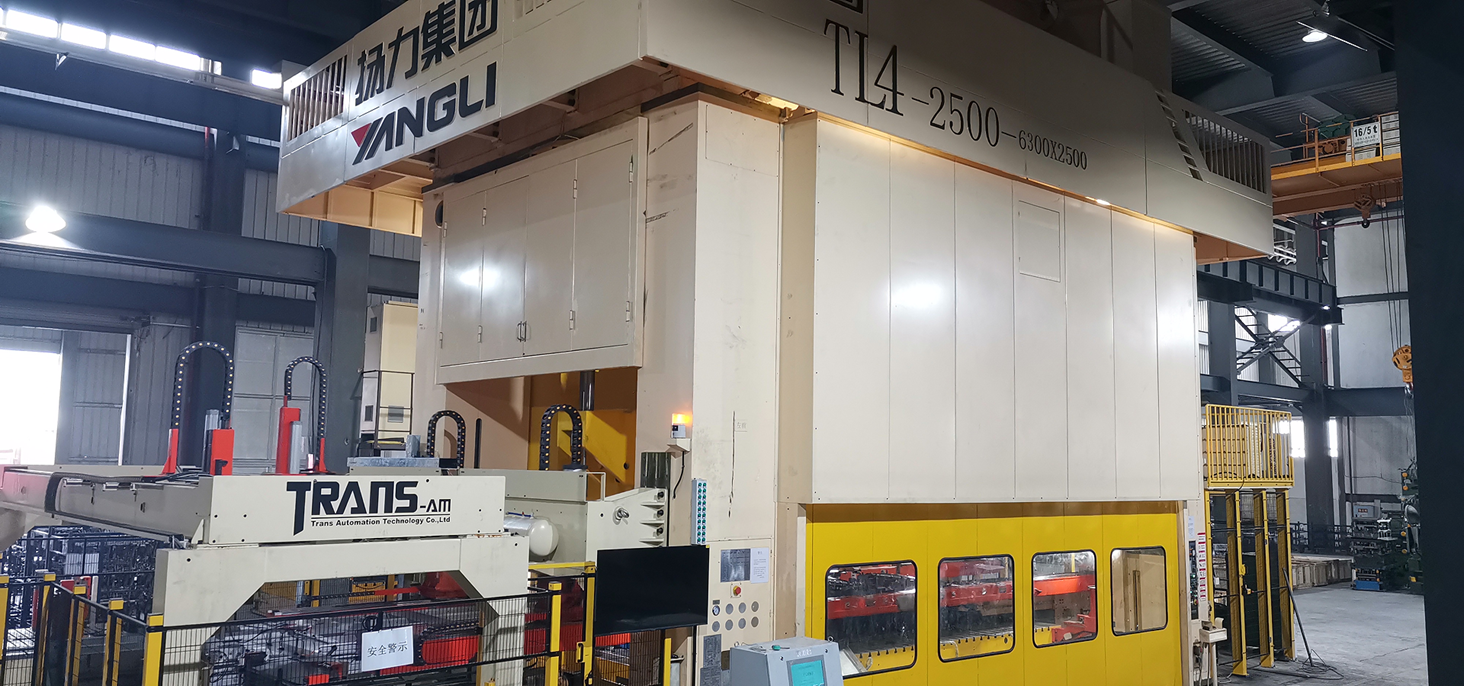

Heavy-type two-arm 3D transfer systems (800–3000T)

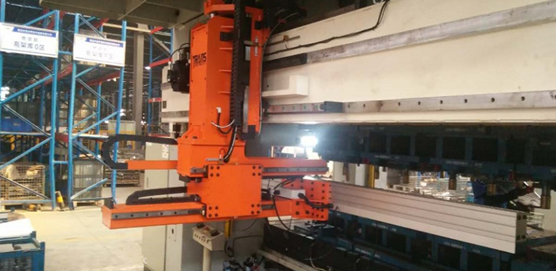

Independent transfer systems (200–800T)

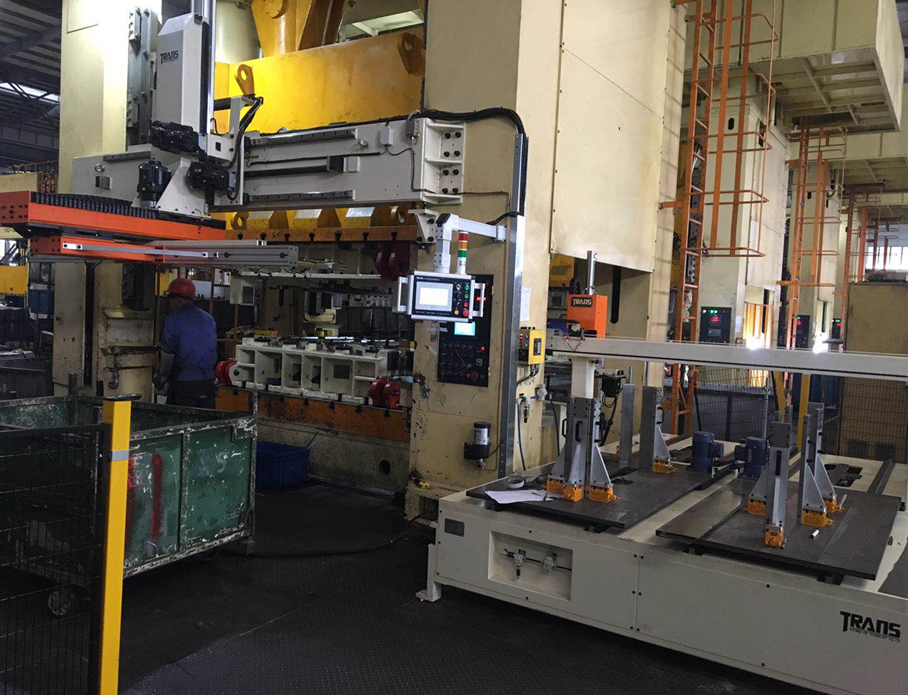

Rod connecting transfer systems (60–315T)
High-speed tilting transfer systems (60–315T)

These systems are designed to:

✔ Maximize press uptime
✔ Improve stroke rate stability under heavy loads
✔ Reduce transfer vibration at high speeds
✔ Maintain alignment between dies
✔ Support large structural automotive components

Engineered for High-Tonnage & Structural Applications

Modern automotive lines often require synchronized processing across multiple stations with consistent handoff timing.

Velsson systems support:

Controlled workpiece transfer between stations
Coordinated robotic operation
Stable throughput across automated cells
Modular expansion as production demand increases

This supports:

✔ Reduced bottlenecks
✔ Improved cycle consistency
✔ Stable takt alignment
✔ Higher operational predictability

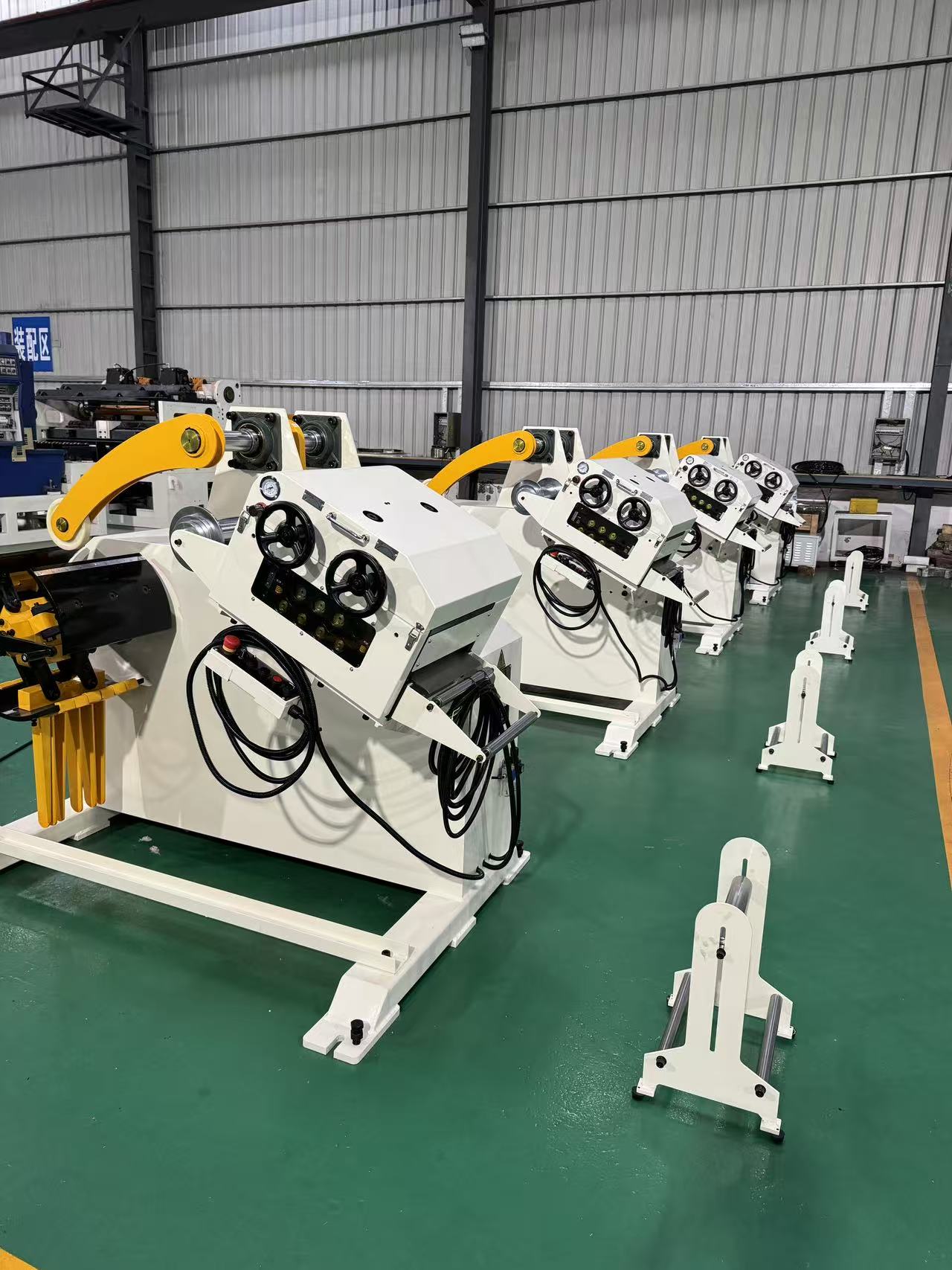

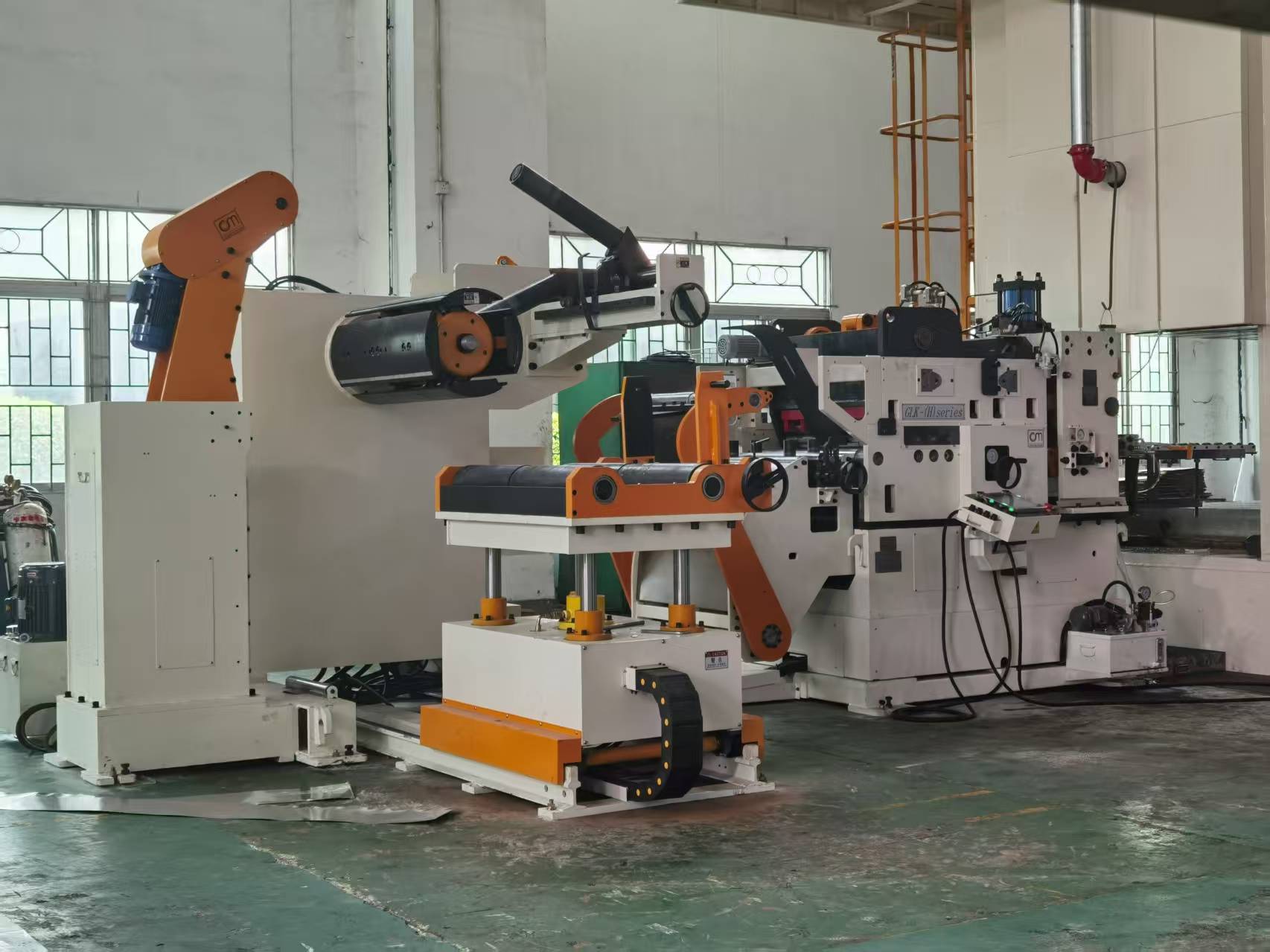

Feeding, Depalletizing & Sheet Control

Transfer performance begins with reliable sheet handling.

TRANS provides:

Truss-type depalletizer + 3D manipulator
Non-magnetic sheet separation
Crane boom loading systems
Roll tail material conveying
First/last sheet emptying functionality
Stamping oiling integration

These systems help:

✔ Reduce misfeeds
✔ Minimize downtime during material changeover
✔ Improve sheet separation reliability
✔ Support continuous operation

Technical Performance Features

TRANSFER systems include engineered features that directly impact press stability and cycle consistency:

High-speed anti-shake functionality
Automatic motion curve determination
One-click save & model switching for changeover efficiency
Dual-piece mode for optimized production
Rich extension interfaces for integration flexibility
Interference check and motion analysis
End pick-up auxiliary design support

Comprehensive safety systems include light curtains, safety locks, sensors, monitoring systems, and LOTO compliance.

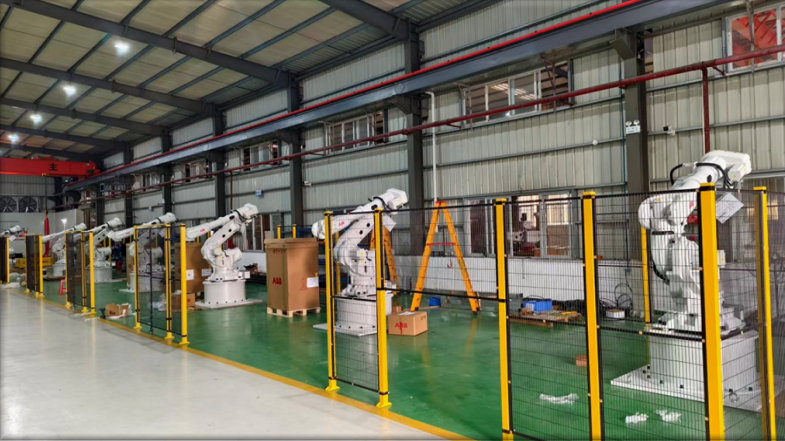

Robotic & Integrated Stamping Lines

Beyond standalone transfer systems, TRANS supports:

Robot-integrated production lines
Automotive thermoforming automation
High-temperature gripping systems
Output stacking lines
Ordinary and high-strength plate 3-in-1 systems

This enables:

✔ End-to-end stamping automation
✔ Robotic integration across multiple presses
✔ Automated hot forming lines
✔ Improved part stacking and end-of-line organization

Built to OEM Standards

TRANS maintains long-term cooperation with AIDA and manufactures in alignment with AIDA manufacturing specifications.

With more than 30 core patents and national high-tech enterprise recognition, TRANS combines engineering depth with industrial-scale execution.

When to Consider Press Line Automation

You may benefit from transfer and stamping automation if:

Press utilization is below target
Manual loading introduces variability
Transfer instability limits stroke rate
High-strength steel or aluminum creates handling challenges
You are launching new EV or structural programs
Changeover time impacts throughput

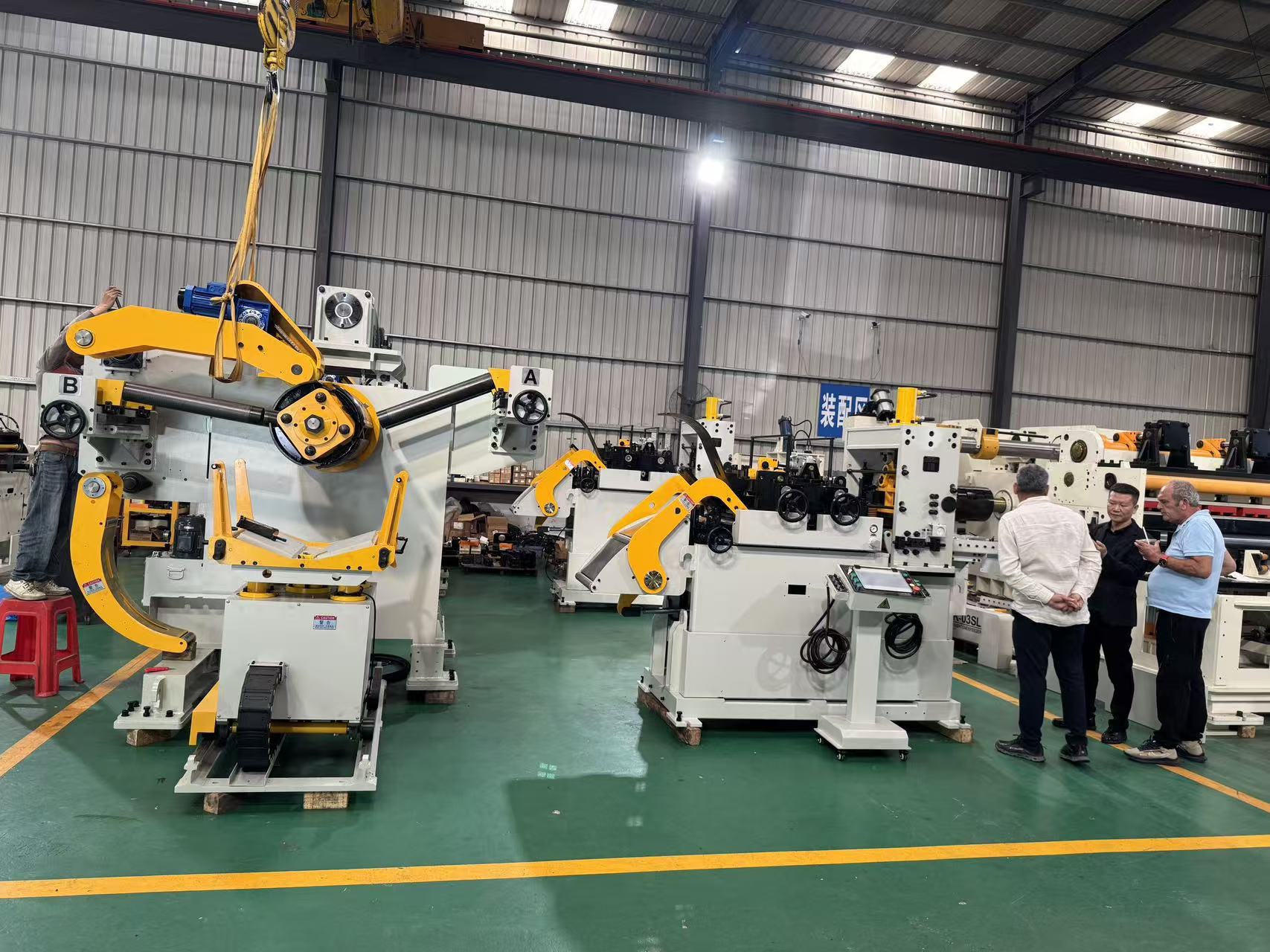

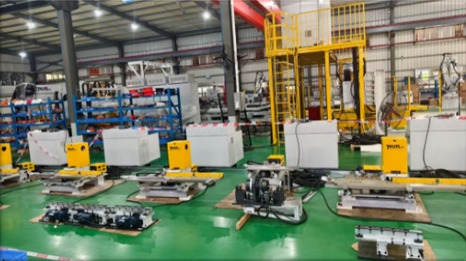

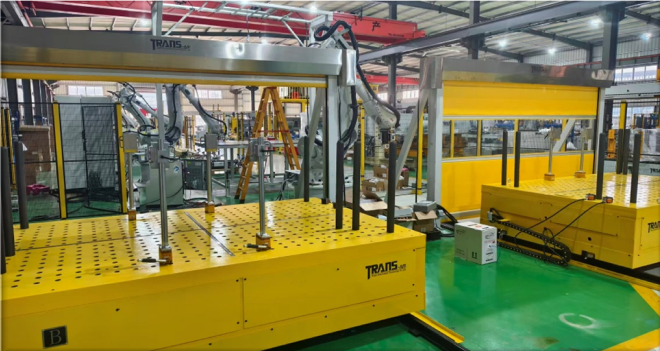

Gallery

Request a Press Line Automation Consultation

If you are planning to automate or upgrade a stamping or punching press line, Velsson can evaluate transfer system compatibility and integration requirements.

We support:

60T–3000T press applications
Multi-station stamping lines
High-strength steel and aluminum processing
Robotic transfer integration
Feeding and depalletizing systems
Thermoforming automation

For a technical evaluation, please share:

Press tonnage and model
Number of stations / dies
Current transfer method
Target strokes per minute
Material type (steel, aluminum, HSS)
Changeover requirements
Safety or compliance constraints

Velsson works directly with engineering and plant teams to evaluate qualified automation projects. Submission of technical details allows our team to determine system compatibility and application fit. info@velsson.com
